  • CNC Router Services in Las Vegas, NV

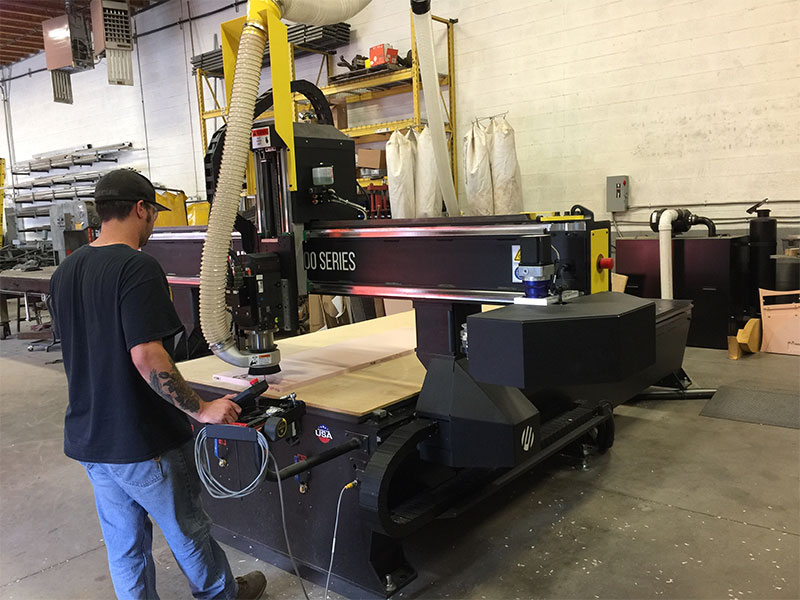

    2019 Multicam 5000 5’ X 10’ CNC Router Table

    Blaque’s artistic designers can CAD design and draw in 2D for your flat cutting needs. We can also design and draw in 3D using the latest CAD and sculpting software to create and cut 3D designs out of wood, foam or high density urethane ( HDU ). Our fabricators can complete your sculpting projects from start to finish.

    If you’re not sure what you want, let our CAD designer help you realize your imagination by sitting down with him and watching him bring your idea to life on the screen.

ROUTER FEATURES


    • 5’ X 10’ Vacuum Table
    • 5’ X 10’ cut space with a 16” “Z” Height ( Capable of cutting 3D up to 16” tall )
    • Z-axis clearance: 16
    • Z-axis travel: 18
    • Repeatability: +/- 0.001
    • Positional Displacement Accuracy: +/- 0.005 over 10’
    • Cutting speed: 1,200 ipm
    • Rapid Traverse: 2,200 ipm
    • Drive System X,Y axes: Rack and Pinion * Drive System Z axis: Ball Screw
    • Standard Work Surface: 1” Phenolic
    • 12 position rotary tool to decrease cut time ( saving the customer money )

WHAT CAN THE ROUTER DO?


    • High speed 2D cutting
    • 3D cutting for signage/sculptures
    • Engraving ( wood,metal,plastic and foam )
    • Piece marking parts
    • Jig making
    • High speed parts drilling
    • Cabinet parts
    • Door
    • Hardware cutouts

APPLICATIONS


    • 3D Carving
    • Acrylic Fabrication
    • Aluminum Fabrication
    • Architectural Millwork
    • Woodworking Applications
    • Aerospace
    • Cabinetry
    • Exhibits and Fixtures
    • Sign Making

WHAT CAN THE ROUTER CUT?


    • Plywood
    • Hard Wood
    • MDF
    • Acrylic
    • ACM
    • Copper
    • Aluminum
    • Brass
    • PVC
    • Stainless and Carbon Steel Engraving
    • Foam
    • High Density Urethane (HDU)

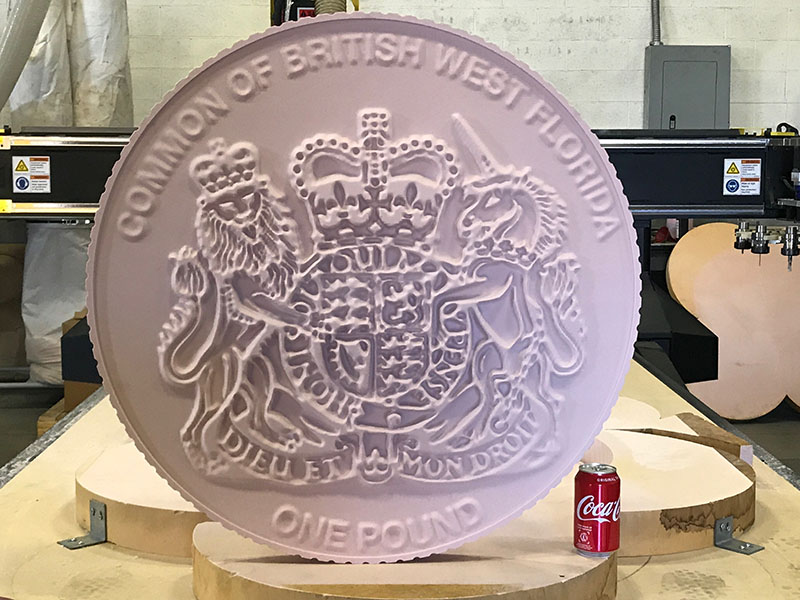

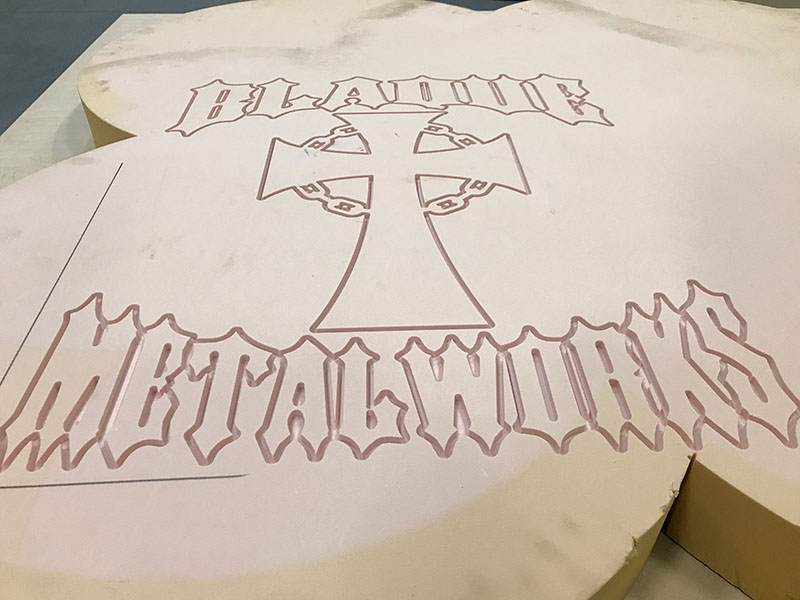

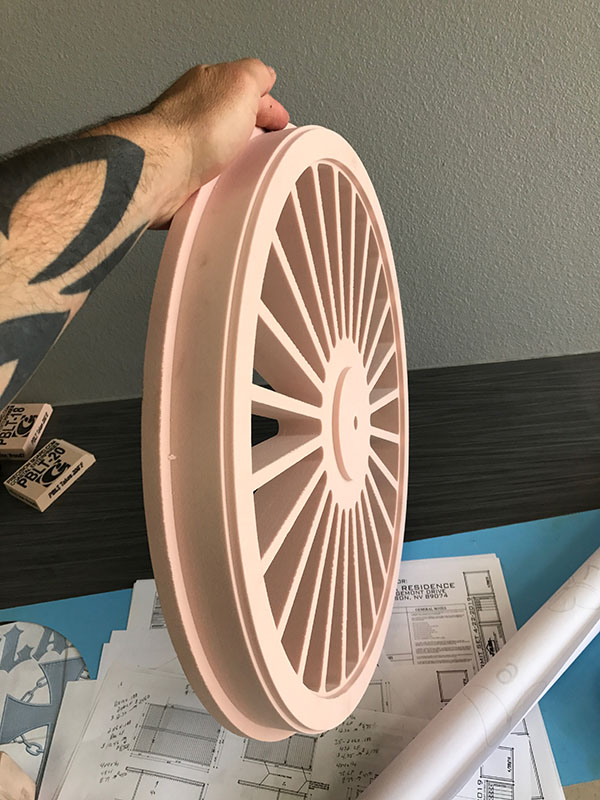

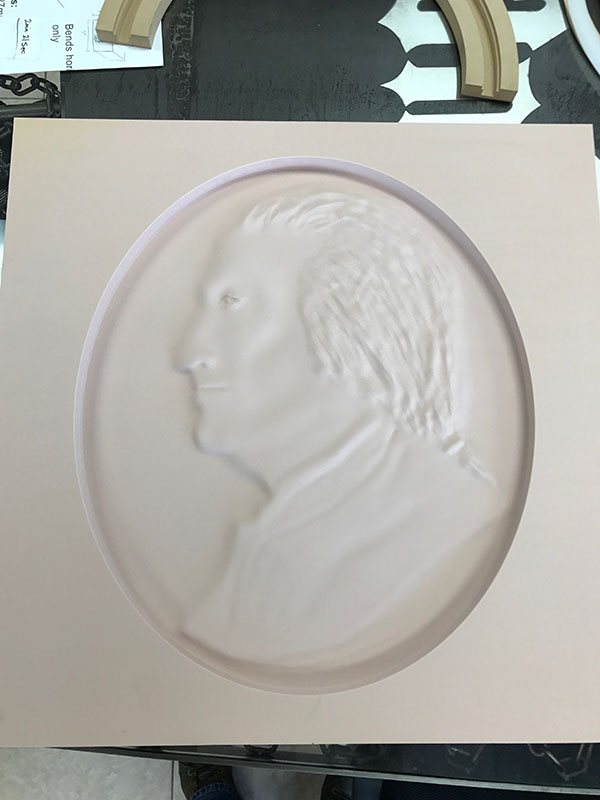

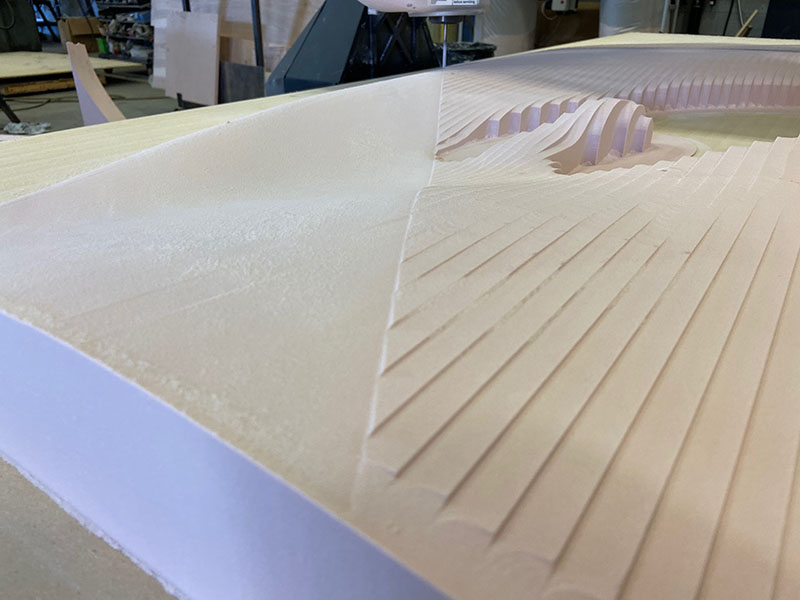

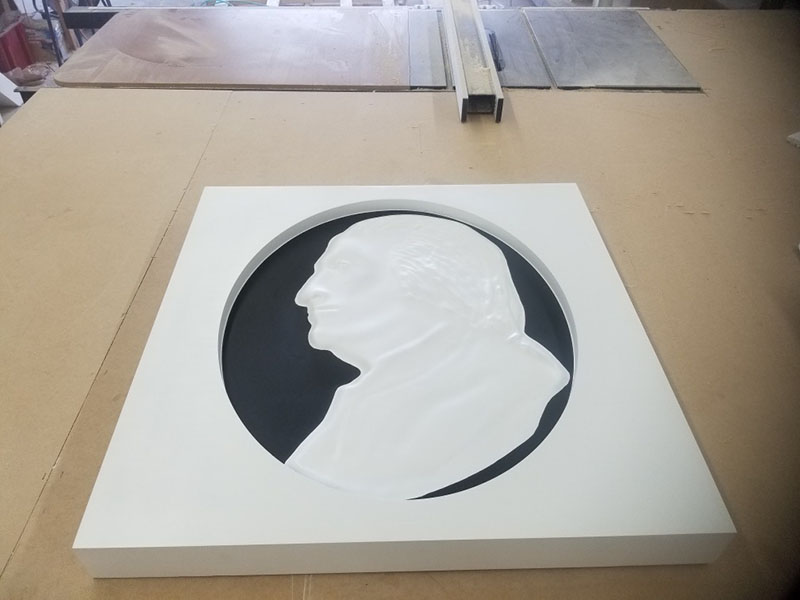

CNC Router Gallery
